Comprehensive Guide to Beval Gear Services
1. Introduction
1.1 What Are Bevel Gears and Their Importance??

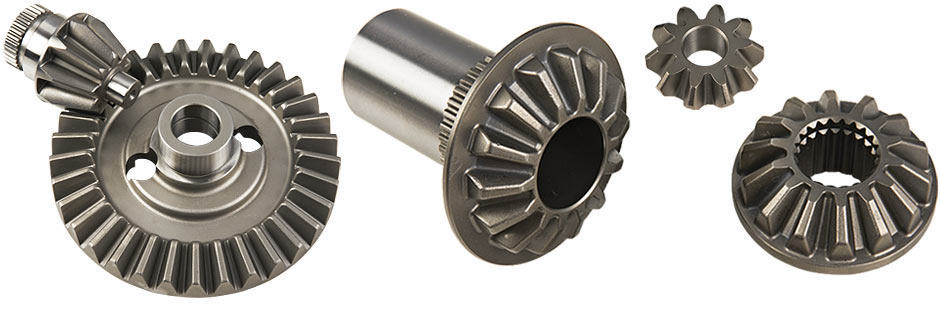

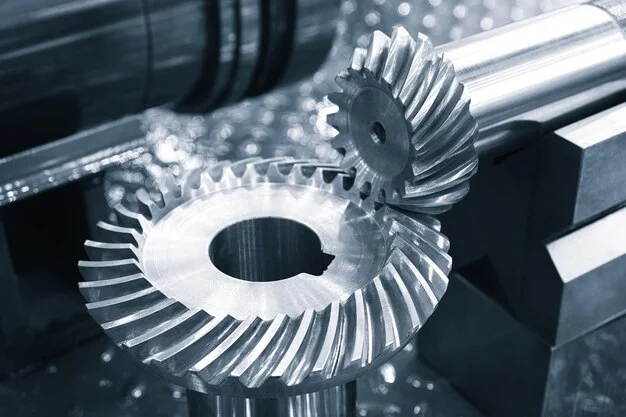

Bevel gears are mechanical components used to transmit power between intersecting shafts, typically at right angles. Their conical shape allows for efficient angular motion transfer, making them essential in various applications where space constraints and directional changes are factors.
1.2 Why Choose Custom Bevel Gears?
Standard bevel gears may not meet the specific requirements of every application. Custom bevel gears are tailored to precise specifications, ensuring optimal performance, durability, and efficiency in specialized machinery and systems.
2. Advantages of Custom Bevel Gears
2.1 Efficiency: Designed to minimize energy loss during power transmission.
2.2 Compact Design: Ideal for applications with limited space.
2.3 Noise Reduction: Spiral bevel gears, in particular, offer quieter operation compared to straight bevel gears.
2.4 Durability: Custom materials and heat treatments enhance lifespan and performance under stress.
2.5 Precision: Tailored manufacturing processes ensure high accuracy and reliability.
3. PairGears Custom Bevel Gear Services
3.1 Personalized Design
We collaborate with clients to design bevel gears that meet specific operational requirements, including considerations for load capacity, speed ratios, and spatial constraints.
3.2 Material Selection
Offering a range of materials such as carbon steel, stainless steel, and brass, we select the appropriate material based on the application's demands, balancing factors like strength, corrosion resistance, and weight.
3.3 Size and Specifications
Custom bevel gears are produced to exact specifications, including dimensions, tooth geometry, and shaft configurations, ensuring compatibility with existing systems.
3.4 Surface Treatment and Coatings
To enhance performance and longevity, we apply various surface treatments such as nitriding and chrome plating, which improve wear resistance and reduce friction.
3.5 Advanced Manufacturing Techniques
3.5.1 CNC Precision Machining: Utilizing state-of-the-art CNC machines for high-precision gear cutting.

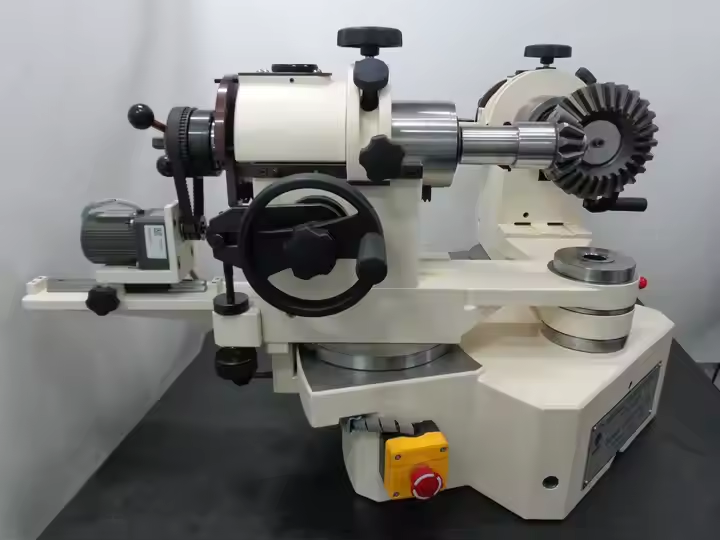

3.5.2 Gear Grinding: Achieving fine tooth profiles and surface finishes for optimal meshing.
3.5.3 Heat Treatment: Applying controlled heat processes to achieve desired hardness and strength.
3.5.4 Inspection and Testing: Employing advanced metrology tools to ensure dimensional accuracy and quality standards.
3.6 Fast Response and Delivery
Our efficient project management ensures quick turnaround times, even for complex or large orders, without compromising on quality.
4.1 Design Parameters
Key factors influencing bevel gear design include pressure angle, pitch diameter, shaft angle, and tooth count. These parameters are carefully considered to optimize performance and compatibility with the intended application.
4.2 Material Science
The choice of material affects the gear's strength, durability, and resistance to environmental factors. For instance, stainless steel offers excellent corrosion resistance, making it suitable for marine applications.
4.3 Manufacturing Process
The production of bevel gears involves several steps:
4.3.1 Blank Preparation: Selecting and preparing the raw material.

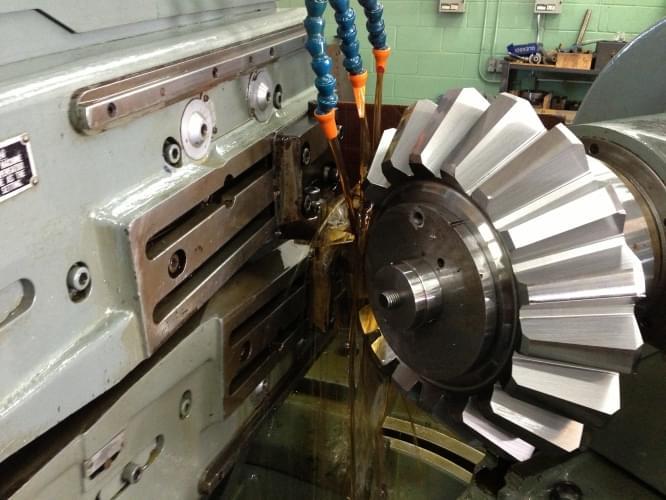

4.3.2 Cutting/Shaping: Employing methods like hobbing or shaping to form the gear teeth.
4.3.3 Finishing: Grinding or lapping to achieve precise dimensions and smooth surfaces.
4.3.4 Heat Treatment: Enhancing material properties through controlled heating processes.
4.3.5 Inspection: Conducting thorough quality checks to ensure specifications are met.
4.4 Surface Treatment
Surface treatments such as nitriding or chrome plating are applied to improve wear resistance, reduce friction, and extend the gear's operational life.
5.1 Strict Quality Testing Standards
We adhere to rigorous testing procedures, including hardness testing, dimensional tolerance checks, and surface roughness measurements, to ensure every bevel gear meets high-quality standards.
5.2 End-to-End Monitoring
Our advanced monitoring systems track the production process from start to finish, ensuring precision and consistency in every batch.
5.3 Third-Party Certifications
We are committed to meeting global standards, and our products are certified by ISO and other relevant international bodies, ensuring compliance with industry requirements.
6. Applications of Custom Bevel Gears
6.1 Automotive Industry:

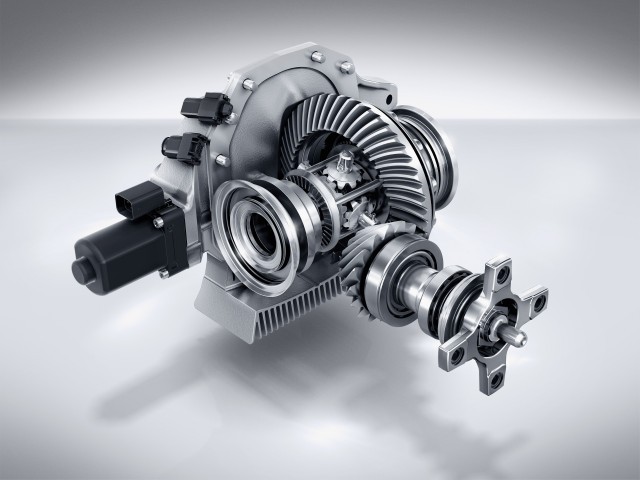

Used in differential gears and steering systems.
6.2 Aerospace:
Critical components in aircraft transmission systems.
6.3 Industrial Machinery:
Applied in conveyors, mixers, and other equipment requiring angular power transmission.
6.4 Marine Applications:
Essential in propulsion systems and steering mechanisms.
6.5 Agricultural Machinery:
Applied in tractors and harvesting equipment.
7. Case Studies
7.1 Automotive Industry
We provided custom bevel gears for a leading automotive manufacturer, enhancing the efficiency and reliability of their differential systems.
7.2 Aerospace Sector
Our precision bevel gears were integrated into aircraft transmission systems, contributing to improved performance and safety.
7.3 Industrial Machinery
We supplied bevel gears for a major industrial machinery company, optimizing their conveyor systems for better efficiency and reduced maintenance.
8. FAQ
Q1: What is the minimum order quantity for custom bevel gears?
A1: The minimum order quantity depends on the specific product specifications. Please contact our sales team for detailed information.
Q2: How long is the lead time for custom bevel gears?
A2: Lead time varies based on the order size and complexity. Typically, we complete orders within 30-45 business days after confirmation.
Q3: What material options are available for custom bevel gears?
A3: We offer a range of material options including carbon steel, stainless steel, brass, and others, depending on your application needs.
Q4: Can you provide samples?
A4: Yes, we can provide samples based on your requirements, though a nominal fee may apply.
Q5: How do you ensure product quality?
A5: We adhere to strict testing processes and quality control standards, ensuring that every batch meets the highest industry standards.
Q6: What if I have special customization requirements?
A6: We are happy to accommodate special customization requests and will work with you to develop tailored solutions.
9. How to Start Collaborating
9.1 Simple Process Overview
To get started, simply provide your specifications and requirements, and our team will provide a tailored solution.
9.2 Contact Information
For more details or to request a quote, please visit our Contact Us page.
10. Conclusion
Custom bevel gears are essential in ensuring the optimal performance and longevity of machinery across various industries. At PairGears, we are committed to providing high-quality, precisely manufactured gears that meet the unique needs of our customers. Contact us today to start your project.
