Precision Plastic Gear Manufacturing
Custom Plastic Gear Manufacturer
Manufactured to your drawings and requirements.
SEND YOUR DRAWINGTell Us Your Requirements
Share drawings, samples or application details.
Home / Custom Plastic Gears
Customizable
Types of Custom Plastic Gears
Explore custom plastic spur, helical, internal, bevel, compound gears and worm wheels. Each type can be tailored to specific tooth geometry, dimensions, materials and application requirements.
Plastic Spur GearsCustom Plastic Spur Gears
Plastic spur gears customized by module, tooth count, face width and bore design for parallel-shaft transmissions.
Plastic Helical GearsCustom Plastic Helical Gears
Helical plastic gears designed with specified helix angle, module and tooth geometry for smooth parallel-shaft transmission.
Plastic Internal GearsCustom Plastic Internal Gears
Plastic ring gears with internal teeth, customized for planetary gear systems and compact transmission assemblies.
Plastic Worm WheelsCustom Plastic Worm Wheels
Plastic worm wheels designed to match specified worm geometry, center distance and transmission requirements.
Plastic Bevel GearsCustom Plastic Bevel Gears
Plastic bevel gears customized for intersecting-shaft drives, with tooth geometry matched to shaft angle and mating gears.
Plastic Compound GearsCustom Plastic Compound Gears
Integrated plastic gears with multiple coaxial gear stages, customized for compact multi-stage reduction mechanisms.
Customization Capabilities
Custom Belt Pulley Specifications
From belt profiles and pulley dimensions to materials and mounting features, specifications are customized to your drawings, belt details and application requirements.
Built Around Your Requirements
Custom plastic gears developed to your drawings, samples or application requirements. Gear geometry, polymer grade, operating conditions and mating components are reviewed to determine a suitable manufacturing and inspection plan.
Specification
Custom Options
Gear Types
Plastic Spur Gears, Helical Gears, Internal Gears, Bevel Gears, Compound Gears and Worm Wheels
Materials
POM (Acetal), PA6/PA66 (Nylon), PBT, PEEK, PPS and selected engineering plastic grades
Module / Diametral Pitch
Metric module or diametral pitch customized to drawing; normal or transverse module specified for helical gears
Tooth Geometry
Tooth count, pressure angle, face width, tooth profile, helix angle and hand as applicable
Gear Dimensions
Outside diameter, overall thickness, hub dimensions and critical assembly dimensions to drawing
Bore & Mounting
Round bores, D-shaped bores, keyways, splines, custom hubs and metal-insert interfaces subject to design review
Meshing Requirements
Mating gear geometry, center distance, specified backlash and application-specific contact requirements
Material Considerations
Moisture absorption, thermal expansion, creep, wear resistance and dimensional stability
Operating Conditions
Torque, rotational speed, duty cycle, temperature, humidity, lubrication and chemical exposure
Manufacturing Process
CNC Machining or Precision Injection Molding, depending on geometry, quantity and technical feasibility
Dimensional Tolerances
Critical dimensions, fits and gear accuracy requirements specified according to customer drawings
Inspection
Critical dimensions, tooth geometry, bore fit, runout and functional meshing inspection as required
Production Basis
2D drawings, 3D CAD models, physical samples or approved technical specifications
Custom Gear GeometryTooth profiles, modules, dimensions and shaft interfaces to drawing
Material & Process ReviewPolymer and production method selected for the intended application
Quality InspectionCritical dimensions, runout and tooth geometry checked as agreed
Technical ReviewDrawings and service conditions reviewed before quotation
Manufacturing Capabilities
Belt Pulley Manufacturing Processes
Machining and surface treatment are selected according to the pulley type, material, belt specification and drawing requirements.

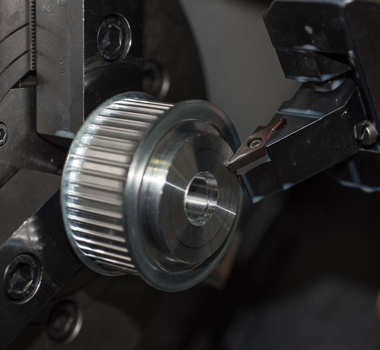

CNC Turning
Machines pulley diameters, faces, hubs and bores to drawing, establishing reference surfaces for subsequent tooth, groove and mounting feature machining.

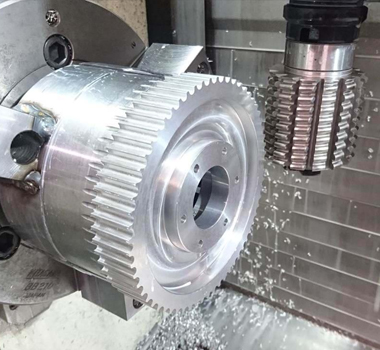

Tooth & Groove
Machining
Machines timing pulley tooth spaces or V-belt grooves to match the specified belt profile, pitch or section, with geometry controlled to drawing requirements.

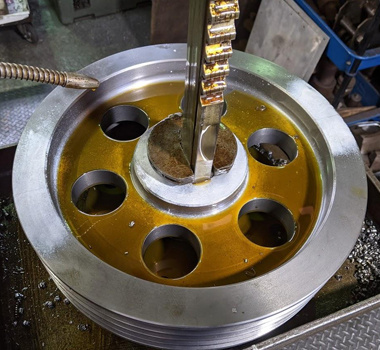

Bore & Keyway
Machining
Machines bore fits, keyways, threaded holes and specified bushing interfaces to suit the mating shaft and the mounting arrangement defined in your drawings.
Surface Treatment
Applies material-appropriate finishes or coatings to agreed requirements, accounting for treatment thickness on critical bore fits and belt-contact surfaces.
Customizable materials
Material selection depends on pulley speed, load, weight limits and operating conditions. Aluminum alloy, steel, stainless steel and cast iron can be considered according to your drawings and application requirements.
If you want to customize other special materials, pleasecontact us.
Customization capabilities
Material Options for Custom Belt Pulleys
Aluminum Alloy
A lightweight option for pulleys where rotating mass matters. Alloy grade and surface treatment are selected according to load, wear and corrosion requirements.
Steel
Suitable for pulleys requiring strength and resistance to mechanical loads. Steel grade, heat treatment and protective finish depend on the drawing and operating conditions.
Stainless Steel
An option for pulleys exposed to moisture or corrosive environments. Grade selection should account for the specific environment, strength requirements and machining needs.
Cast Iron
Commonly used for V-belt pulleys in industrial drives. Grade and pulley construction are selected according to size, operating speed and load requirements.
Customizable Heat treatment
Surface treatments are selected according to pulley material, operating conditions and drawing requirements. Treatment thickness and masking requirements are reviewed for critical bores, mounting features and belt-contact surfaces.

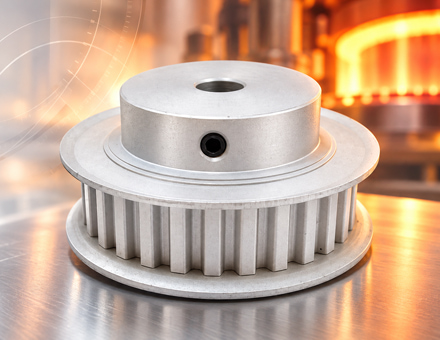

Aluminum Anodizing
Anodizing options for aluminum pulleys are reviewed according to corrosion, wear and appearance requirements. Coating type, thickness and masking requirements are specified to maintain critical bore fits and belt-contact dimensions.

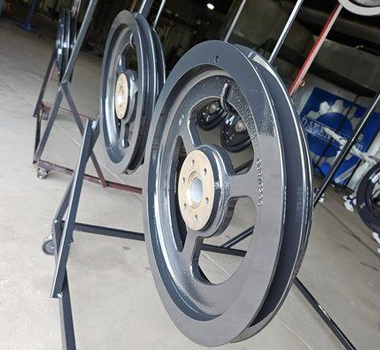

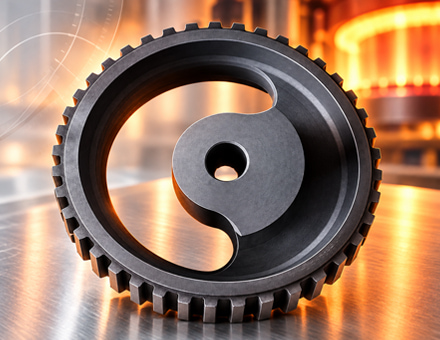

Steel Surface Finishes
Black oxide or plating may be specified for steel pulleys according to the application. Finish selection considers the operating environment and corrosion protection requirements, with treatment thickness accounted for on critical fits and mounting features.

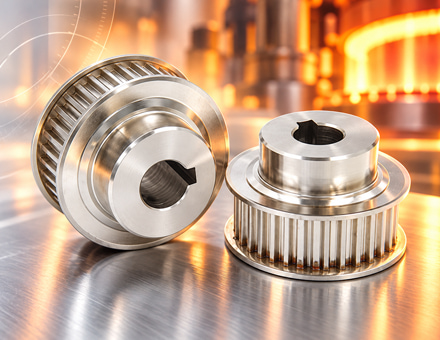

Stainless Steel Passivation
Passivation may be specified for stainless steel pulleys to remove free iron contamination from the surface. The process is reviewed according to the stainless steel grade, operating environment and agreed surface condition requirements.
Get Started
Request A Custom Gear Quote
Share your drawings, specifications, or project requirements with us. Our team will review your needs and provide a suitable manufacturing solution for your custom belt pulleys.
01
›
02
Receive Technical Review
Our team evaluates specifications and provides a suitable solution.
›
03
Start Your Gear Project
Once confirmed, we begin manufacturing your custom belt pulleys.
📄
Upload Your Drawings or Inquiry
Support PDF, CAD files, 3D models or other technical documents.
✓ Free technical consultation
✓ Engineering support
✓ Fast quotation response
✓ Reliable quality control
Customize step by step
Precision Pulley Customization Process
Step 1
Submit Requirements
Provide pulley drawings, samples, belt specifications and application details.
Step 2
Technical Review
Confirm belt compatibility, pulley dimensions, bore fits, mounting features and material.
Step 3
Planning & Quotation
Agree on machining, surface treatment, inspection requirements, pricing and lead time.
Step 4
Prototype / Sample
Produce initial pulleys for dimensional checks and assembly validation where required.
Step 5
Inspection & Approval
Check dimensions, tooth or groove geometry and runout against agreed requirements for approval.
Step 6
Volume Production
Proceed with approved production, final inspection and packing to agreed requirements.

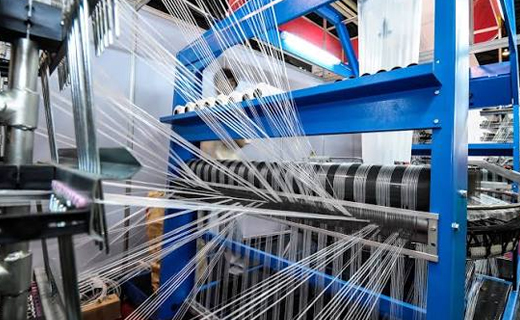

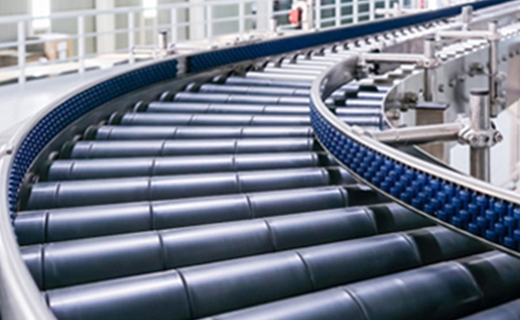

Applications
Custom Belt Pulley Applications

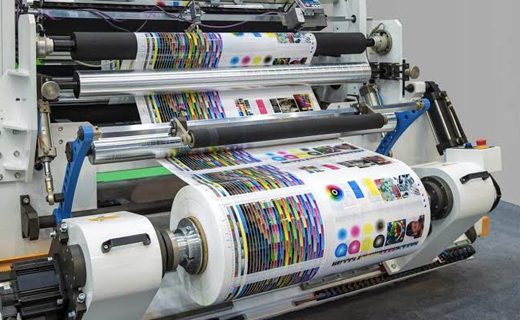

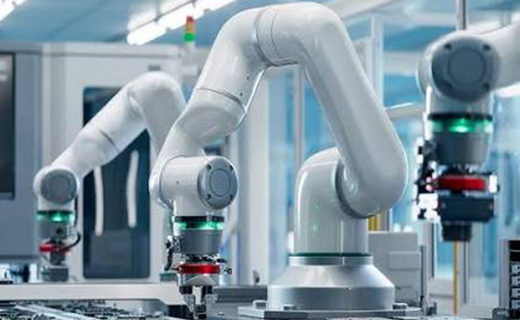

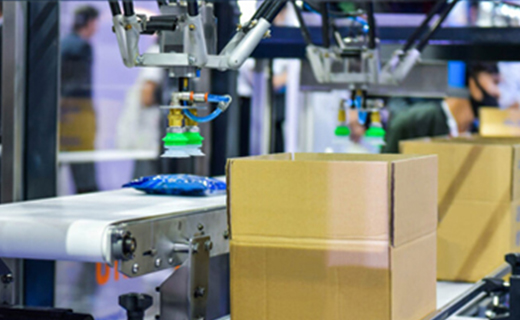

Custom timing belt pulleys, V-belt pulleys and idler pulleys for industrial machinery, automation, conveying systems and agricultural equipment, with belt profiles and mounting features specified to suit each application.
FAQ
Frequently Asked Questions
Find answers to common questions about our custom belt pulleys. Learn more about our capabilities, materials, accuracy, and quotation process.
01
Can You Manufacture Custom Belt Pulleys From Drawings?
Yes. PairGears manufactures custom belt pulleys to approved drawings and technical requirements. You can submit 2D drawings, 3D models or samples for review. Belt specifications, critical dimensions and mounting details are confirmed before production.
02
What Types Of Belt Pulleys Can You Produce?
Custom options include timing belt pulleys, V-belt pulleys and idler pulleys, subject to technical review. Tooth or groove geometry, working width, bore size, hub dimensions and flange arrangements are specified according to the pulley type and assembly requirements.
03
What Materials And Surface Treatments Are Available?
Material options include aluminum alloy, steel, stainless steel and cast iron, subject to project review. Surface treatments are selected for the material and operating environment. The material grade, finish and any treatment allowance on critical dimensions are agreed before production.
04
How Do You Check Belt Pulley Quality?
Inspection covers agreed drawing requirements, including pulley dimensions, bore fits, tooth or groove geometry, and radial and axial runout. Additional checks, such as balancing, material verification or surface treatment inspection, can be reviewed and specified for the project.
05
What Information Is Needed For A Custom Belt Pulley Quote?
Please provide drawings or a sample, the belt manufacturer and model, material requirements, order quantity and required delivery date. For timing pulleys, include the tooth profile, pitch and tooth count. For V-belt pulleys, include the belt section and groove count. Bore, hub, mounting and inspection requirements should also be specified.
