Precision Plastic Gear Manufacturing
Custom Plastic Gear Manufacturer
Manufactured to your drawings and requirements.
SEND YOUR DRAWINGTell Us Your Requirements
Share drawings, samples or application details.
Home / Gear Materials & Heat Treatment Guide
Customizable

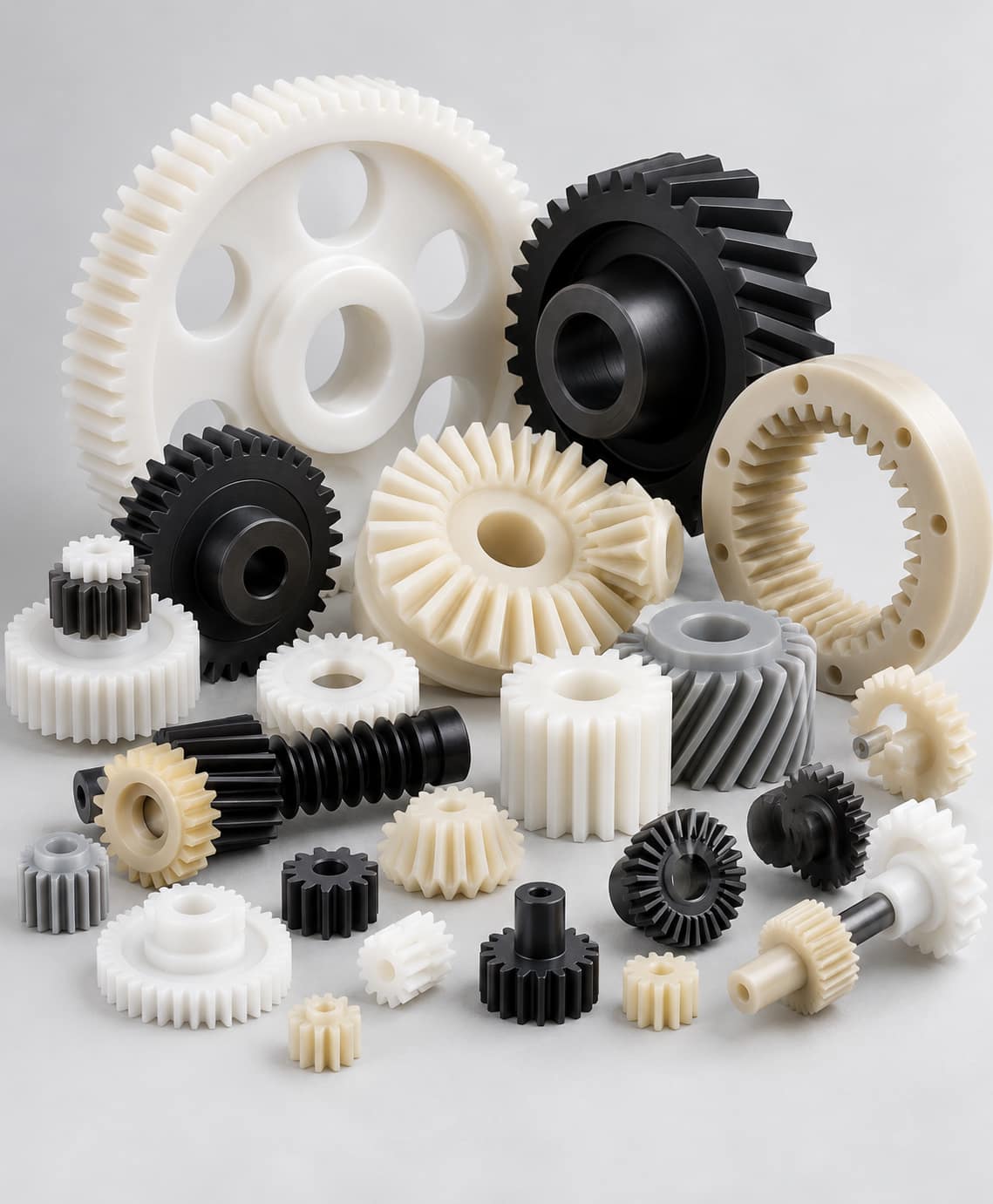

Types of Custom Plastic Gears
Explore custom plastic spur, helical, internal, bevel, compound gears and worm wheels. Each type can be tailored to specific tooth geometry, dimensions, materials and application requirements.

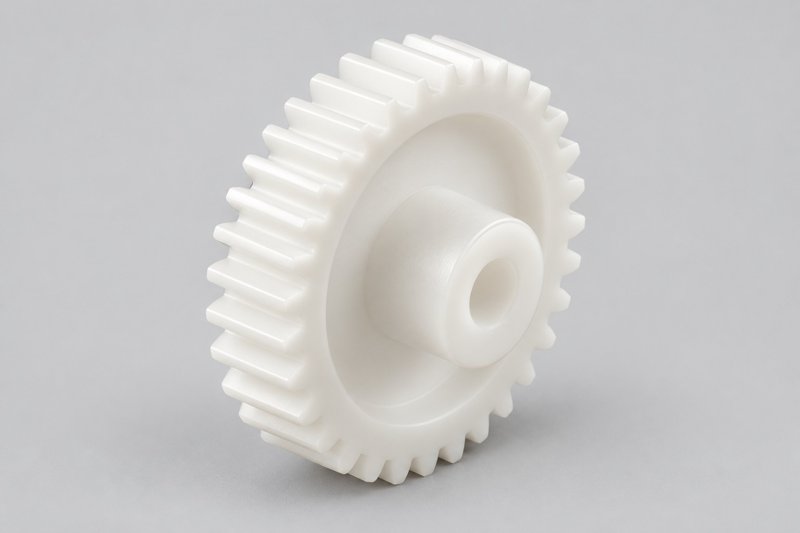

Plastic Spur GearsCustom Plastic Spur Gears
Plastic spur gears customized by module, tooth count, face width and bore design for parallel-shaft transmissions.

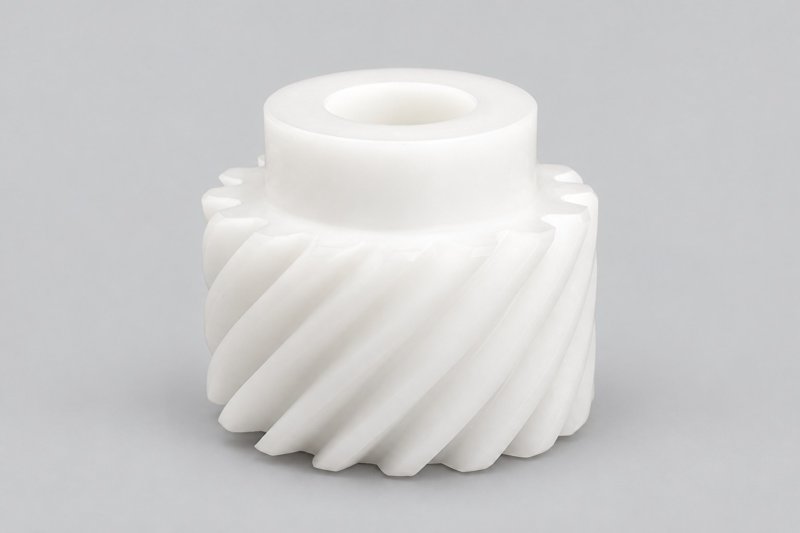

Plastic Helical GearsCustom Plastic Helical Gears
Helical plastic gears designed with specified helix angle, module and tooth geometry for smooth parallel-shaft transmission.

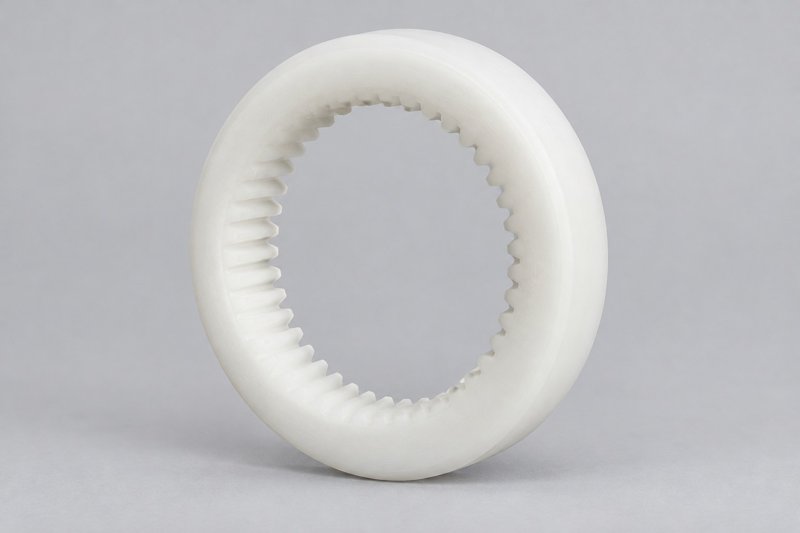

Plastic Internal GearsCustom Plastic Internal Gears
Plastic ring gears with internal teeth, customized for planetary gear systems and compact transmission assemblies.

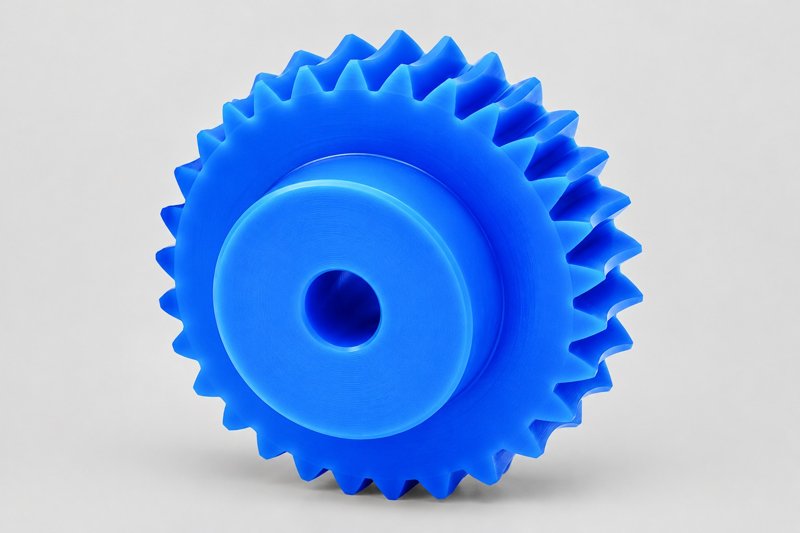

Plastic Worm WheelsCustom Plastic Worm Wheels
Plastic worm wheels designed to match specified worm geometry, center distance and transmission requirements.

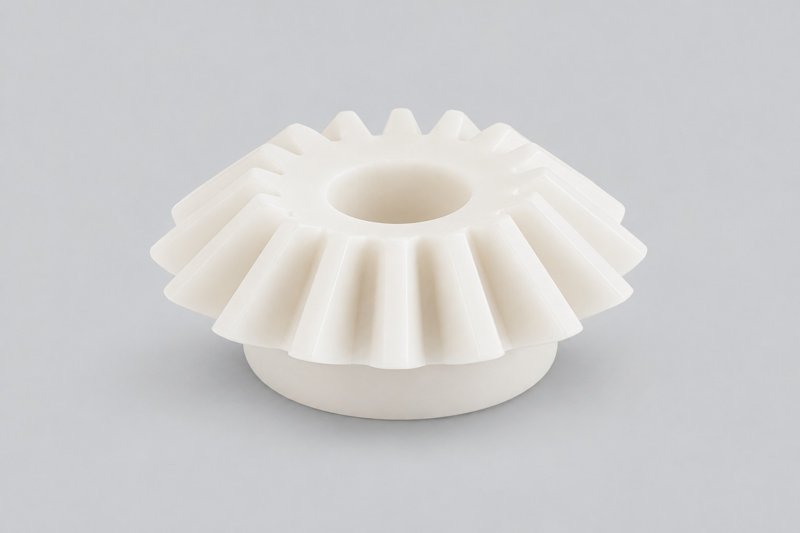

Plastic Bevel GearsCustom Plastic Bevel Gears
Plastic bevel gears customized for intersecting-shaft drives, with tooth geometry matched to shaft angle and mating gears.

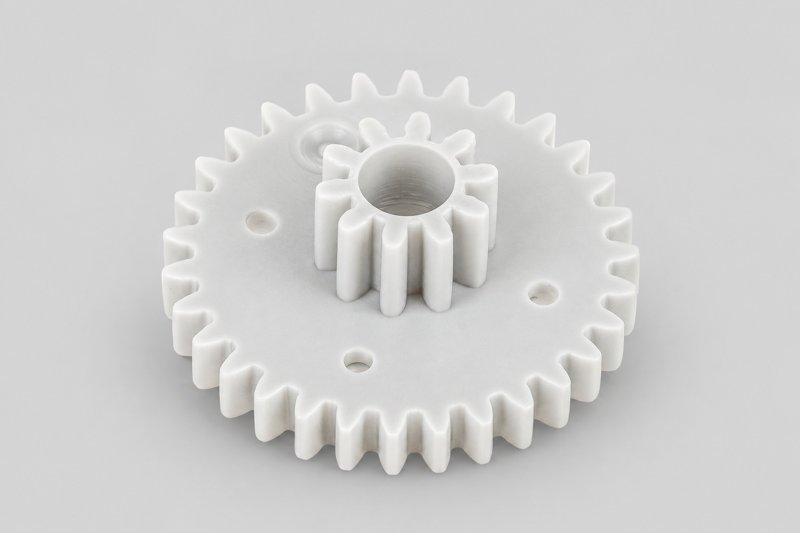

Plastic Compound GearsCustom Plastic Compound Gears
Integrated plastic gears with multiple coaxial gear stages, customized for compact multi-stage reduction mechanisms.
Customization Capabilities
Custom Plastic Gear Specifications
From gear design and engineering plastic selection to shaft interfaces and inspection requirements, each specification is customized to your drawings and application needs.
Built Around Your Requirements
Custom plastic gears developed to your drawings, samples or application requirements. Gear geometry, polymer grade, operating conditions and mating components are reviewed to determine a suitable manufacturing and inspection plan.
From prototype validation to repeat production, we support plastic gear projects with material selection, design evaluation and quality control throughout the manufacturing process. Each solution is tailored to the application's load, speed, environment and transmission requirements.
Specification
Custom Options
Gear Types
Plastic Spur Gears, Helical Gears, Internal Gears, Bevel Gears, Compound Gears and Worm Wheels
Materials
POM (Acetal), PA6/PA66 (Nylon), PBT, PEEK, PPS and selected engineering plastic grades
Module / Diametral Pitch
Metric module or diametral pitch customized to drawing; normal or transverse module specified for helical gears
Tooth Geometry
Tooth count, pressure angle, face width, tooth profile, helix angle and hand as applicable
Gear Dimensions
Outside diameter, overall thickness, hub dimensions and critical assembly dimensions to drawing
Bore & Mounting
Round bores, D-shaped bores, keyways, splines, custom hubs and metal-insert interfaces subject to design review
Meshing Requirements
Mating gear geometry, center distance, specified backlash and application-specific contact requirements
Material Considerations
Moisture absorption, thermal expansion, creep, wear resistance and dimensional stability
Operating Conditions
Torque, rotational speed, duty cycle, temperature, humidity, lubrication and chemical exposure
Manufacturing Process
CNC Machining or Precision Injection Molding, depending on geometry, quantity and technical feasibility
Dimensional Tolerances
Critical dimensions, fits and gear accuracy requirements specified according to customer drawings
Inspection
Critical dimensions, tooth geometry, bore fit, runout and functional meshing inspection as required
Production Basis
2D drawings, 3D CAD models, physical samples or approved technical specifications
Custom Gear GeometryTooth profiles, modules, dimensions and shaft interfaces to drawing
Material & Process ReviewPolymer and production method selected for the intended application
Quality InspectionCritical dimensions, runout and tooth geometry checked as agreed
Technical ReviewDrawings and service conditions reviewed before quotation
Manufacturing Capabilities
Custom Plastic Gear Manufacturing Processes
Plastic gear manufacturing methods are selected based on material, gear geometry, production volume and application requirements, with finishing and inspection performed to agreed specifications.
CNC Gear
Machining
Plastic gear blanks are turned and gear teeth machined to drawing, with attention to dimensional stability, tooth geometry and material behavior.
Precision Injection
Molding
Suitable for repeat production, with mold design and molding parameters reviewed to control tooth geometry, shrinkage, warpage and dimensional consistency.

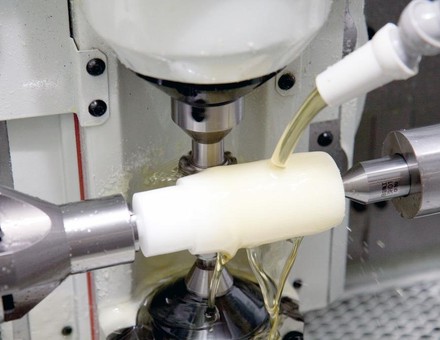

Deburring &
Finishing
Removes machining burrs and unwanted edge material as required, while protecting critical tooth profiles, bore surfaces and mating features.
Gear Inspection &
Testing
Checks critical dimensions, bore fits, runout and gear tooth geometry against agreed requirements, with functional meshing tests where specified.
Plastic Material Options
Engineering Plastics for Custom Gears
Explore POM, PA66, PEEK and PPS materials for custom plastic gears. Each offers different mechanical, wear and thermal properties to suit specific operating conditions and transmission requirements.

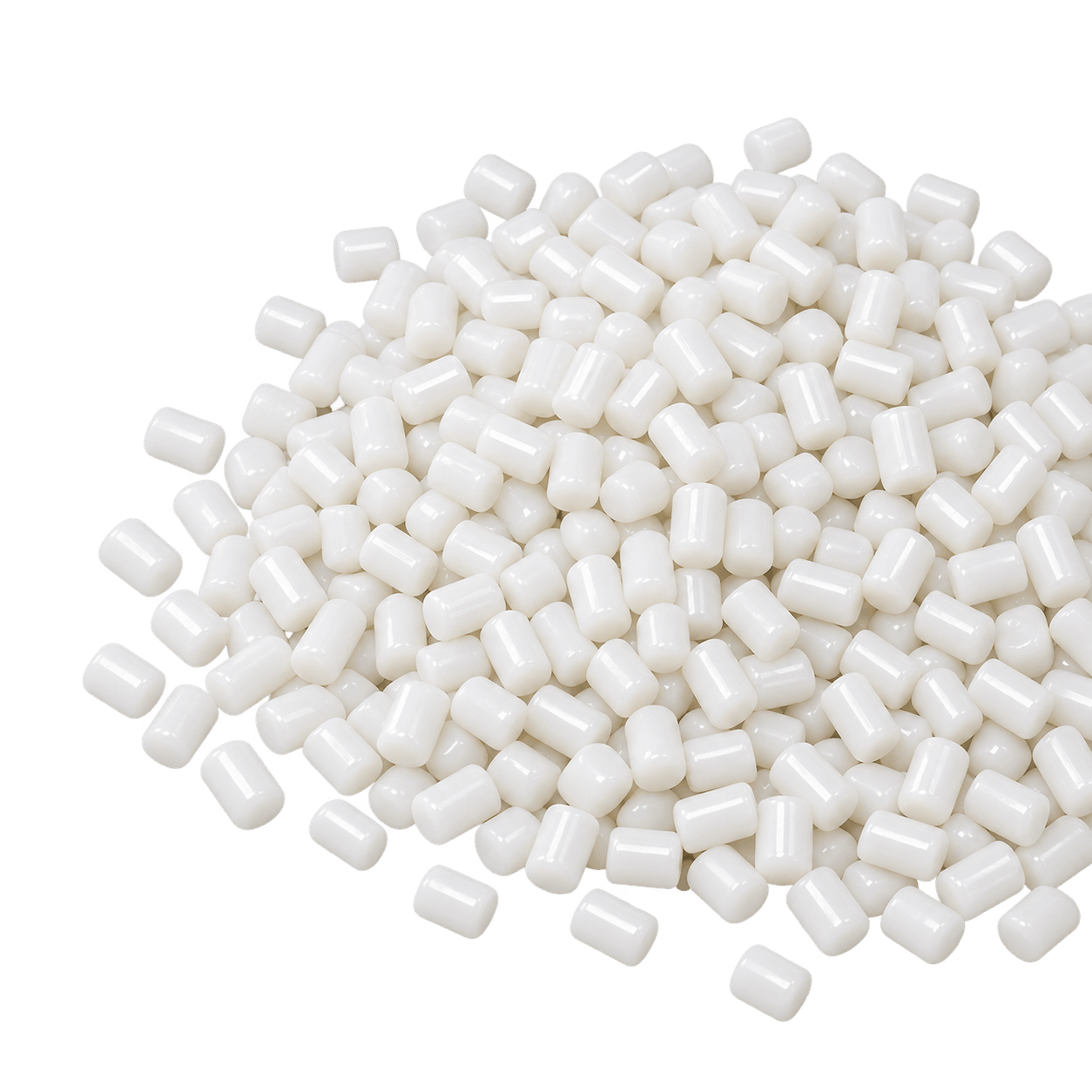

POM (Acetal)
Low Friction & Wear Resistance:POM offers good sliding properties and wear resistance, making it a common choice for precision plastic gears.
Dimensional Stability:Its low moisture absorption helps maintain gear dimensions and consistent meshing in compact transmission systems.

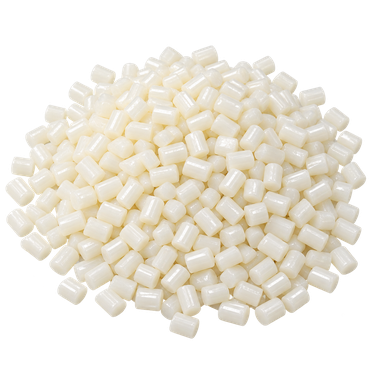

PA66 (Nylon)
Strength & Toughness:PA66 provides good mechanical strength, impact resistance and wear performance for a range of plastic gear applications.
Load-Bearing Performance:Suitable for mechanical drives and actuators, with moisture absorption and operating temperature considered during gear design.

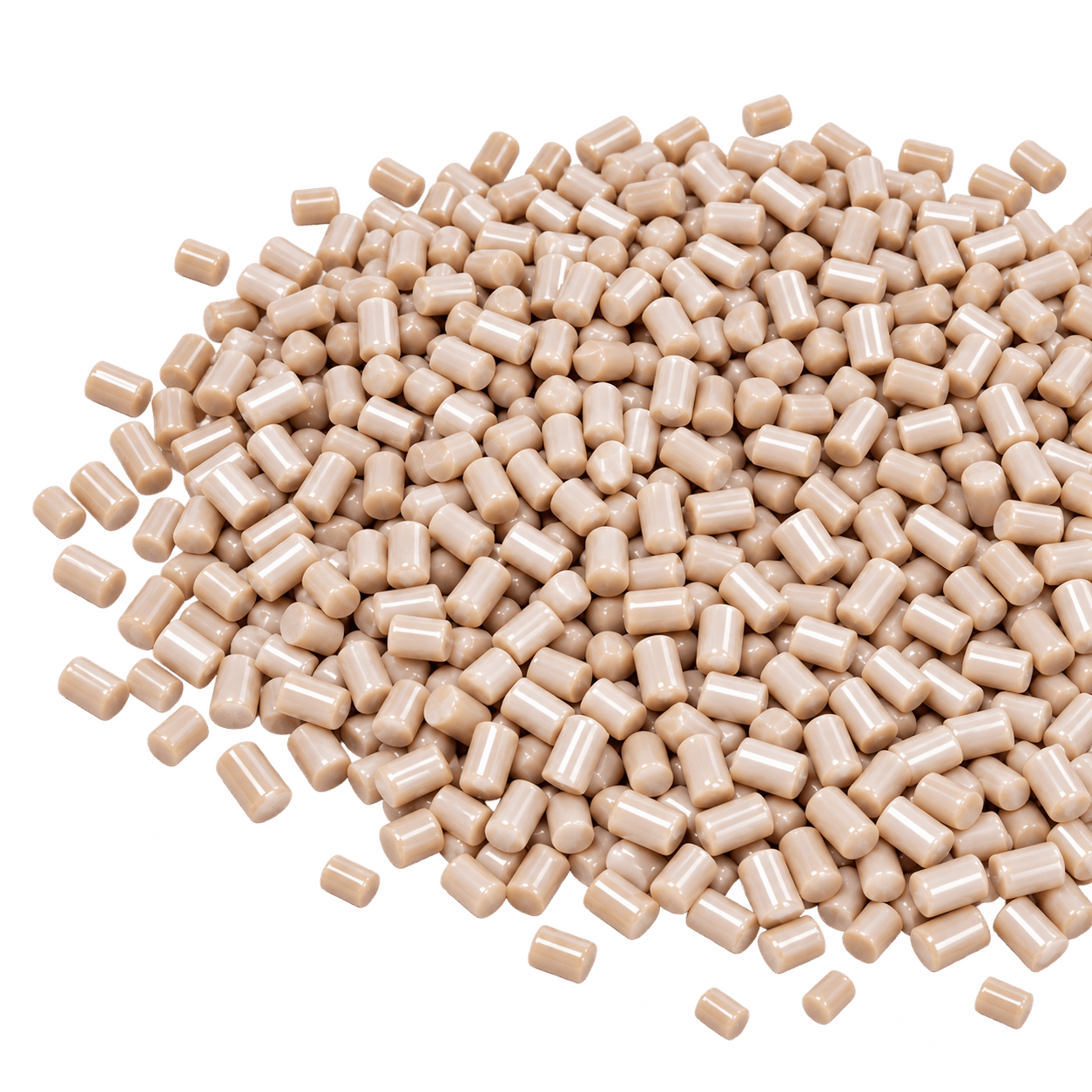

PEEK (Polyether Ether Ketone)
High-Temperature Resistance:PEEK retains useful mechanical properties at elevated temperatures, making it suitable for demanding transmission applications.
Chemical & Wear Resistance:Offers excellent resistance to many chemicals, with wear performance depending on the material grade, load and mating surfaces.

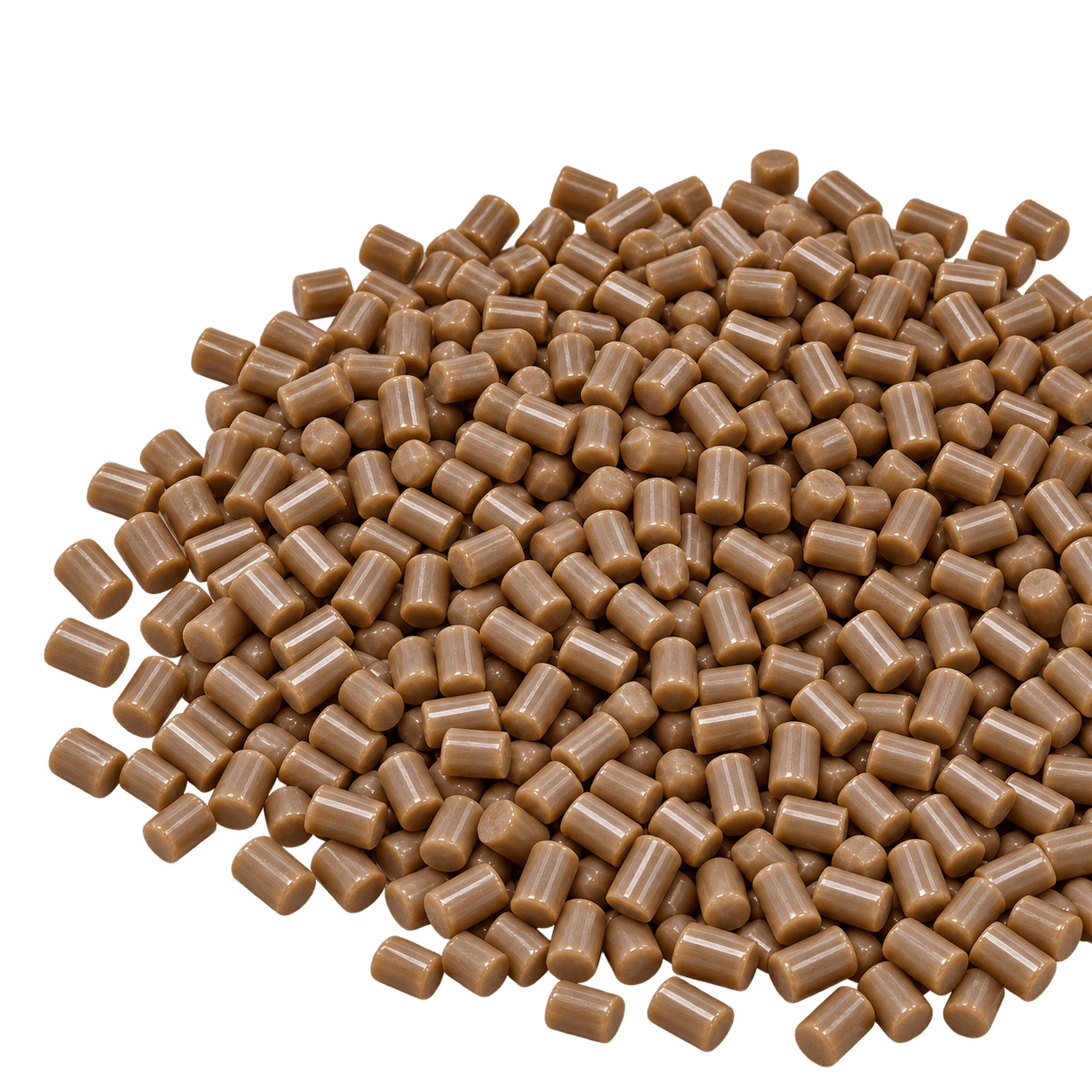

PPS (Polyphenylene Sulfide)
Thermal & Chemical Stability:PPS provides good heat resistance and resistance to many chemicals, making it suitable for specialized industrial environments.
Dimensional Stability:Low moisture absorption supports dimensional consistency, while gear toughness and wear resistance depend on the selected grade.
Get Started
Request A Custom Gear Quote
Share your drawings, specifications, or project requirements with us. Our team will review your needs and provide a suitable manufacturing solution for your custom plastic gears.
01
›
02
Receive Technical Review
Our team evaluates specifications and provides a suitable solution.
›
03
Start Your Gear Project
Once confirmed, we begin manufacturing your custom plastic gears.
📄
Upload Your Drawings or Inquiry
Support PDF, CAD files, 3D models or other technical documents.
✓ Free technical consultation
✓ Engineering support
✓ Fast quotation response
✓ Reliable quality control
Customize step by step
Precision Plastic Gear Customization Process
Step 1
Submit Requirements
Provide gear drawings, 3D models, samples, material requirements and application details for review.
Step 2
Technical Review
Review gear geometry, tooth profile, material selection, operating conditions and mating components.
Step 3
Process Planning & Quotation
Confirm manufacturing method, material grade, inspection requirements, pricing and lead time.
Step 4
Prototype / Sample
Produce initial plastic gears for dimensional checks, assembly validation and application evaluation.
Step 5
Inspection & Approval
Verify gear dimensions, tooth geometry, bore accuracy and functional requirements before approval.
Step 6
Volume Production
Proceed with approved production, final inspection and packing according to agreed specifications.
Applications
Applications Of Custom Plastic Gears

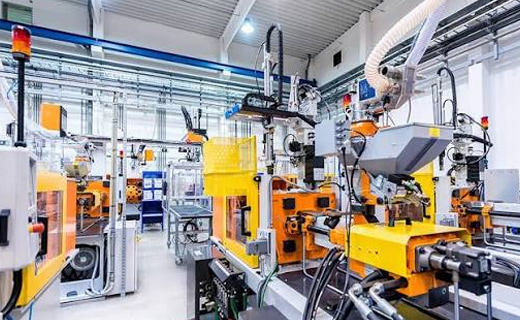

Custom plastic gears are widely used in compact transmission systems where lightweight design, low noise operation and reliable motion control are required.

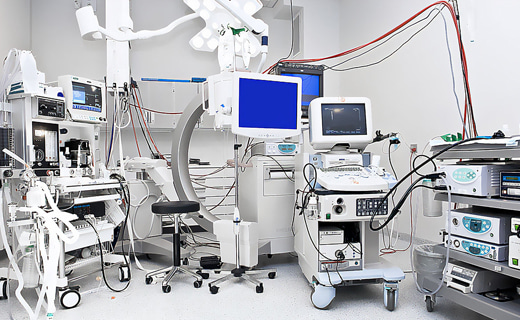

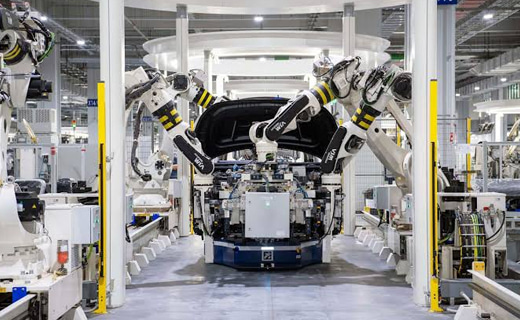

From automation equipment to medical devices and automotive components, PairGears provides customized gear solutions based on application requirements and operating conditions.
FAQ
Frequently Asked Questions
Find answers to common questions about our custom plastic gears. Learn more about our capabilities, materials, accuracy, and quotation process.
01
Can You Manufacture Custom Plastic Gears From Drawings?
Yes. PairGears manufactures custom plastic gears based on customer drawings, 3D models, samples or technical requirements. Gear specifications, material selection, tooth geometry and critical dimensions are reviewed before production to ensure the design meets the intended application.
02
What Types Of Plastic Gears Can You Produce?
Custom options include plastic spur gears, helical gears, internal gears, bevel gears, compound gears and worm wheels. Tooth profile, module, pressure angle, bore design and mounting features are customized according to the gear system and assembly requirements.
03
What Materials Are Available For Custom Plastic Gears?
Common engineering plastic options include POM (Acetal), PA66 (Nylon), PEEK and PPS. Material selection depends on application factors such as load, speed, temperature, moisture exposure, wear requirements and compatibility with mating components.
04
How Do You Ensure The Quality Of Plastic Gears?
Inspection focuses on critical drawing requirements, including gear dimensions, tooth geometry, bore accuracy, runout and assembly fit. Additional checks can be specified according to project requirements, such as material verification and functional meshing tests.
05
What Information Is Needed For A Custom Plastic Gear Quote?
Please provide 2D drawings, 3D models or samples, along with material requirements, gear specifications, application conditions and order quantity. Details such as module, tooth count, pressure angle, bore dimensions, operating environment and inspection requirements help us evaluate the project accurately.
