Gear Accuracy Control: From Blank to Final Inspection
Gear Accuracy Control: From Blank to Final Inspection
Gear accuracy is not created during final inspection. It is developed and maintained step by step through blank preparation, datum machining, tooth cutting, heat treatment, finishing, and inspection. A deviation at any stage may affect tooth profile, lead, runout, assembly relationships, and batch consistency.
For custom gear buyers, the objective is not to determine every manufacturing process themselves. Instead, they should confirm whether the selected precision gear manufacturer can establish a stable process control plan based on the drawing, material, accuracy requirements, and operating conditions.
Quick Answer
Gear accuracy is built through controlled datums, tooth cutting, heat treatment, finishing and inspection. Final inspection verifies the result, but it cannot replace process control or correct every error created earlier.
What Gear Accuracy Control Means
Gear accuracy control means continuously managing critical dimensions and geometric deviations throughout the manufacturing process rather than checking only whether the finished gear passes inspection before shipment.
Common control items include:
Bore, shaft journal, face, and face-width dimensions
Tooth profile, lead, and pitch deviations
Gear radial runout
Tooth thickness, measurement over pins, or span measurement
The positional relationship between gear teeth and mounting datums
Surface condition and batch consistency
Why Final Inspection Alone Is Not Enough
Final inspection can determine whether a gear meets the specified requirements, but it cannot replace control during manufacturing.
Early datum errors may accumulate through turning, tooth cutting, and later operations.
Unsuitable clamping, fixture changes, or tool wear may increase runout and geometric variation.
Final inspection may reveal a problem only after rework, sorting, delay, or rejection becomes likely.
For example, an unstable blank datum may create accumulated errors in later operations. An unsuitable clamping method may increase gear runout. If heat-treatment distortion exceeds the available finishing allowance, later machining may not fully restore the required geometry.
When quality control relies only on final inspection, problems are often discovered too late. This may result in rework, additional sorting, delivery delays, or batch rejection. Accuracy grade, material, heat treatment, process route, and inspection scope should therefore be confirmed during quotation and process evaluation.
Gear Accuracy Control Through Manufacturing Stages
Control material condition, allowance, bore, face, outside diameter, and reference relationships.
Manage machine condition, fixtures, tool wear, cutting parameters, cooling, and datum consistency.
Plan distortion risk, machining allowance, corrective operations, and the stage of final evaluation.
Recover critical geometry where needed and verify dimensions, teeth, hardness, and visual condition.

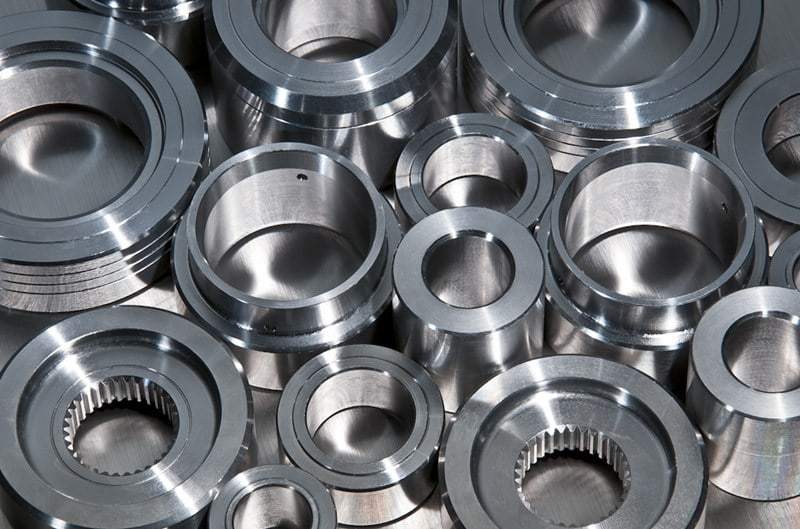

Gear Blank and Datum Preparation
The gear blank is the starting point of accuracy control. Blank dimensions, machining allowance, material condition, and initial datums all influence turning, tooth cutting, heat treatment, and later inspection.
Insufficient allowance may leave too little material for correcting heat-treatment distortion. Excessive allowance may increase machining time and deformation risk. For gear shafts, thin-wall gears, and bore-type gears, the relationship between the bore, face, outside diameter, and shaft journals is especially important.
Material does not directly determine final gear accuracy. However, material condition and heat-treatment response can affect cutting stability and dimensional change. Buyers should therefore define the material grade, supply condition, hardness, and material certificate requirements.
Tooth Cutting and Process Stability
The machining datums established before tooth cutting directly affect the relationship between the gear teeth and the mounting bore, shaft journal, or reference face.
Hobbing, shaping, milling, and other tooth-cutting processes may be influenced by:
- Machine condition
- Fixture rigidity
- Workpiece clamping
- Tool accuracy and wear
- Cutting parameters
- Cooling and temperature variation
- Consistency between machining and inspection datums
A qualified first article does not automatically guarantee stable batch production. First-article inspection confirms whether the setup and process plan are correct, while in-process sampling helps identify tool wear, dimensional drift, and changes in fixture condition.
Heat Treatment and Distortion Control
Heat treatment can improve hardness, strength, and wear resistance, but it may also change tooth geometry, bore size, face condition, and runout.
For carburized, induction-hardened, or quenched-and-tempered gears, manufacturers should consider:
- Machining allowance before heat treatment
- The sensitivity of the part geometry to distortion
- Corrective operations after heat treatment
- Whether final accuracy will be evaluated before or after heat treatment
Without sufficient finishing allowance, grinding, bore finishing, or hard turning may not fully recover critical dimensions. Heat treatment must therefore be planned together with the preceding and subsequent operations.
Finishing and Final Inspection
Finishing processes improve critical dimensions, tooth-surface condition, and final geometric accuracy. Before heat treatment, processes may include finish hobbing, finish shaping, or gear shaving. After heat treatment, manufacturers may use gear grinding, honing, hard turning, bore grinding, or face grinding.
Not every gear requires grinding. The process route should depend on the required accuracy grade, speed, load, noise expectations, and batch assembly requirements. Clearer accuracy requirements allow suppliers to select a suitable process and provide more comparable quotations.
Final inspection may include dimensional checks, runout, tooth profile, lead, pitch, tooth thickness, hardness, and visual condition. Material certificates, heat-treatment records, and packaging checks may also be required, but these documents do not replace geometric gear inspection.
How Accuracy Requirements Affect Cost and Lead Time
Gear accuracy requirements influence both the manufacturing route and the quotation. A tighter accuracy grade may require more stable blank preparation, additional datum control, post-heat-treatment finishing, longer machine time, and more detailed inspection. The cost difference is therefore not caused by inspection alone.
More Operations
Tighter requirements may add datum control, heat-treatment correction, grinding, or other finishing steps.
Longer Cycle
Stable setups, controlled sampling, and slower finishing operations can extend the production schedule.
More Inspection
Tooth-profile, lead, pitch, runout, hardness, and documentation requirements affect quotation scope.
Two gears with the same material, tooth count, and outside dimensions may require very different processes if their accuracy grades, heat-treatment conditions, or inspection requirements are different. For example, one gear may meet its requirements after controlled hobbing, while another may require heat treatment followed by gear grinding and full tooth-profile inspection.
Buyers should define the accuracy requirement according to the actual application rather than automatically requesting the highest available grade. Excessively tight requirements may increase cost and lead time without providing a measurable benefit in the final assembly. Clear information about speed, load, noise expectations, mating parts, and inspection needs helps the supplier recommend a more suitable process route.
Gear Accuracy Checklist Before Ordering
| Information Buyers Should Confirm | Why It Matters |
|---|---|
| Final drawing revision | Prevents manufacturing from outdated or unapproved data |
| Gear type and complete gear data | Determines the manufacturing and inspection methods |
| Accuracy standard, grade, and edition | Prevents misunderstandings between different standards and versions |
| Inspection datum | Defines the bore, shaft journal, or face used as the measurement reference |
| Critical dimensions and tolerances | Controls assembly and functional requirements |
| Material and heat treatment | Determines the process route and distortion-control approach |
| Mating-gear information | Supports backlash, contact, and meshing evaluation |
| Quantity and batch plan | Influences tooling, process control, and sampling frequency |
| Inspection items and report requirements | Defines which inspection data the buyer will receive |
| Operating conditions | Helps evaluate speed, load, noise, and impact risks |
When buyers cannot confirm the complete accuracy grade, they can first provide information about the application, speed, load, assembly method, noise requirements, and mating components. The supplier can then identify which manufacturing and inspection requirements still need clarification.
How PairGears Reviews Gear Accuracy Requirements
During project evaluation, PairGears reviews the drawing revision, gear parameters, material, heat treatment, accuracy requirements, quantity, and inspection scope.
Drawing and Process Review
Gear data, datums, critical tolerances, material, heat treatment, quantity, and required records are reviewed before the route is confirmed.
Replacement-Part Evaluation
For worn samples, the condition of the sample, mating components, and actual assembly relationship must be considered.
Batch Consistency Planning
Post-heat-treatment finishing, tooth inspection, first-article reports, and in-process sampling are evaluated for stable later production.
For projects based on worn samples or replacement parts, the condition of the sample, mating components, and actual assembly relationship also need to be considered. Dimensions measured from a worn part may not represent the original design values.
Before production, PairGears evaluates whether the project requires post-heat-treatment finishing, tooth profile and lead inspection, first-article reports, or batch sampling. For batch orders, the objective is not only to produce an acceptable sample but also to maintain consistency in later production.
Learn more about PairGears quality control and custom precision gear services.
FAQ About Gear Accuracy Control
What does gear accuracy control mean?
Gear accuracy control means continuously managing dimensions, tooth profile, lead, pitch, runout, and related requirements during blank preparation, machining, heat treatment, finishing, and inspection.
Why is final inspection not enough?
Final inspection can identify nonconforming results, but it cannot replace earlier process control. Errors created during machining or heat treatment may be difficult to correct after production is complete.
What commonly affects gear accuracy?
Common factors include blank condition, machining datums, fixtures, tool wear, cutting parameters, heat-treatment distortion, and inspection methods.
Do all gears require full tooth inspection?
No. The inspection scope depends on the gear type, accuracy grade, speed, load, production quantity, application risk, and buyer requirements.
What should buyers provide for an accuracy review?
Buyers should provide the latest drawing, accuracy standard, material, heat treatment, quantity, application information, mating-part data, and inspection requirements.
Conclusion
Gear accuracy control begins with blank preparation and continues through tooth cutting, heat treatment, finishing, and final inspection. Stable gear quality depends not only on a finished-part inspection report but also on clear technical requirements and continuous process control.
Before production, buyers should confirm the drawing revision, accuracy standard, inspection datum, material, heat treatment, quantity, and report requirements.
