How to choose the material for worm gears?
1.Introduction
As a precision gear manufacturer and custom gear supplier, PairGears Committed to providing high-quality powertrain solutions for agricultural machinery, heavy truck, construction equipment and EV. The four sectors still rely on worm gear drives for steering, lifting, adjustment and positioning. Choosing the right worm gear materials and surface technologies has a direct impact on efficiency, durability and lifecycle cost.
This article explains how a precision gear manufacturer like PairGears evaluates worm gear materials, and how these choices support real applications in the four sectors we serve.
2.Why Worm Gear Materials Matter to a Precision Gear Manufacturer
For many modern drivetrains, spur and helical gears carry the main torque, while worm gears are used in auxiliary systems—such as steering gears, lifting mechanisms, locking devices, and fine adjustment units. Even though worm drives are often compact and hidden, their material selection can become a bottleneck for the entire machine.
As a precision gear manufacturer, PairGears looks at worm gear materials from a system point of view:
Will the material maintain tooth profile and contact pattern over the full design life?
Can it survive real-world contamination, shock loads and temperature cycles?
Does it help OEMs reduce energy consumption, noise and maintenance?
The answers to these questions drive our recommendations to customers in Agricultural Machinery, Heavy Truck, Construction Equipment and Electric Vehicle (EV) programs.
3.Traditional Worm Gear Materials in Power Transmission

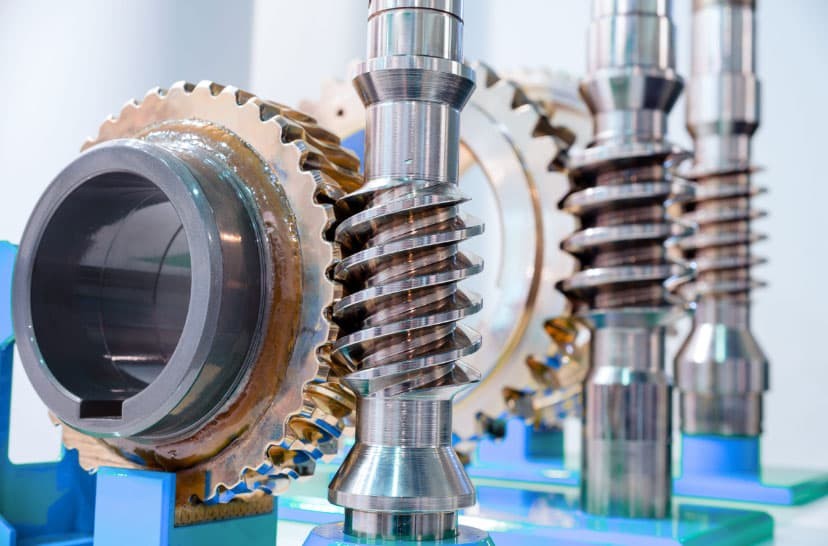

Traditional worm gear sets are typically made from hardened steel worms paired with bronze or cast iron worm wheels. These solutions are still valid in many applications.

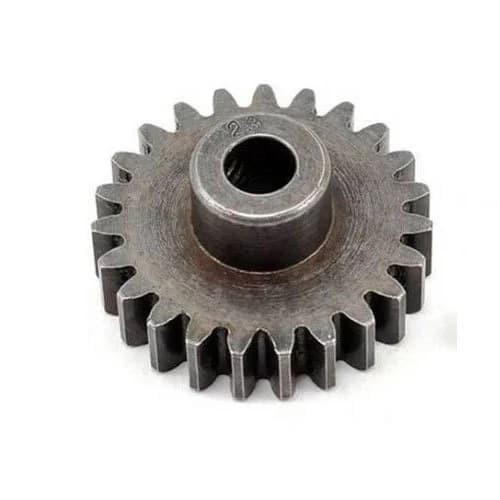

3.1 Hardened Steel
Commonly used for worms or high-load worm wheels.
High strength and excellent contact fatigue performance.
Good wear resistance under proper lubrication.

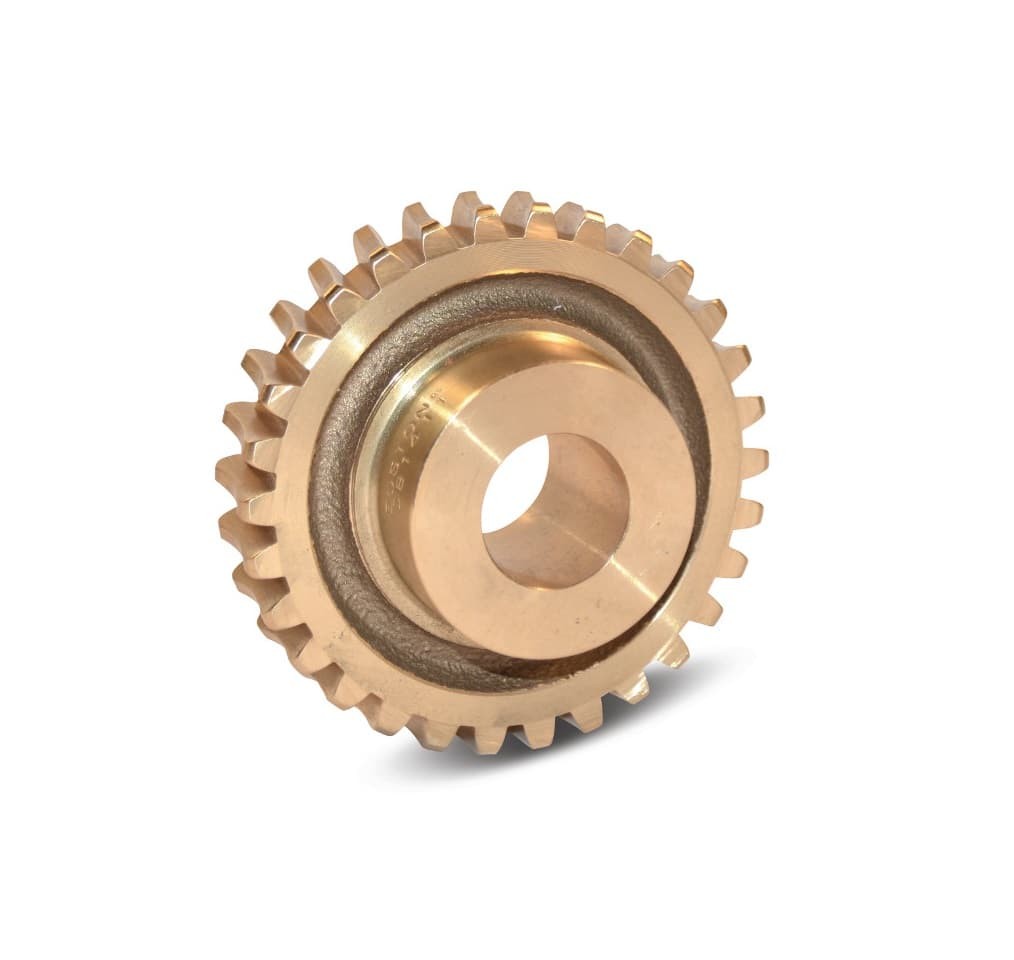

3.2 Bronze
Classic choice for worm wheels.
Low friction coefficient when paired with a steel worm.
Good wear resistance and reasonable anti-scuffing performance.
Well suited for medium-speed, continuous operation.
3.3 Cast Iron
Used where cost is critical and loads are moderate.
Attractive castability and machinability, reducing unit cost.
Basic wear resistance for non-extreme duty cycles.
These traditional materials work, but they also have limitations when OEMs seek higher efficiency, reduced weight or longer maintenance intervals. That is where updated worm gear materials and surface technologies come in.
4.Advanced Worm Gear Materials and Surface Technologies
New developments in worm gear materials and coatings help designers push the limits of compact drives without sacrificing reliability.
1.Composite Polymers
Much lower density than metals, enabling lightweight, compact actuators.
Intrinsically low friction coefficients, reducing sliding losses.
Potential to minimize noise and, in some cases, reduce lubrication demand.
Suitable for light to medium duty and small EV actuators.
2.Advanced Alloys
High-strength aluminum alloys, titanium alloys and special alloy steels:
High strength–weight ratio: maintain or improve load capacity with less mass.
Superior corrosion resistance: attractive for wet, muddy or chemically aggressive environments in agricultural and construction machinery.
Good choice where long life and reduced corrosion risk justify higher material cost.
3.Nano-Coated Metals
Nano coatings such as DLC (diamond-like carbon):
Dramatically reduce friction and adhesive wear on worm flanks.
Improve scuffing resistance in high-load, frequent start/stop conditions.
Extend maintenance intervals when combined with high-quality lubricants.
Particularly relevant for high-precision worm shafts and critical actuator drives.
4.Ceramic and Hybrid Solutions
Extremely high hardness and wear resistance.
Stable performance at elevated temperatures.
More often used as coatings, inserts or hybrid structures rather than full ceramic worm or worm wheel parts.
Suitable for narrow, extreme niches where life-cycle cost can justify complex materials.
5.Comparative Overview of Worm Gear Materials
Table 1: Performance Comparison of Conventional and Advanced Worm Gear Materials
| Material Type | Strength | Wear Resistance | Friction Coefficient | Corrosion Resistance | Typical Application Scenario |
Hardened Steel | High | High | Medium | Medium | Worm shafts in ag equipment, heavy trucks and construction gearboxes |
Bronze | Medium | High | Low | Medium | Traditional worm wheels, steering worm wheels |
Composite Polymers | Medium | Medium | Very low | High | EV actuators, light-duty adjustment mechanisms |
| Advanced Alloys | High | Very high | Low | Very high | Corrosion-critical positions in ag and construction machinery |
| Nano-Coated Metals | High | Very high | Very low | High | High-precision worm shafts and critical drive elements |
| Ceramics | Very high | Very high | Low | Medium | Local parts in special extreme conditions |
This comparative view helps OEM engineers quickly screen potential worm gear materials before moving into detailed design and testing.
6.Application of Worm Gear Materials in Four Sectors
As a custom gear supplier, PairGears does not treat worm gears as isolated parts. We evaluate worm gear materials in the context of the full transmission system and the real loads in each of our four key sectors.
6.1 Agricultural Machinery
Typical uses
Stroke adjustment, header angle control, and fine positioning in seeders, sprayers and harvesters.
Continuous work in dusty, muddy fields with water and fertilizer exposure.
Material approach
Worm: quenched and tempered steel or surface-hardened alloy steel, with optional nano coating on the tooth flanks for extra wear resistance.
Worm wheel: high-strength bronze or reinforced composite polymer to reduce friction and total mass.
Indicative results
Target service life aligned with several intense harvest seasons between major overhauls.

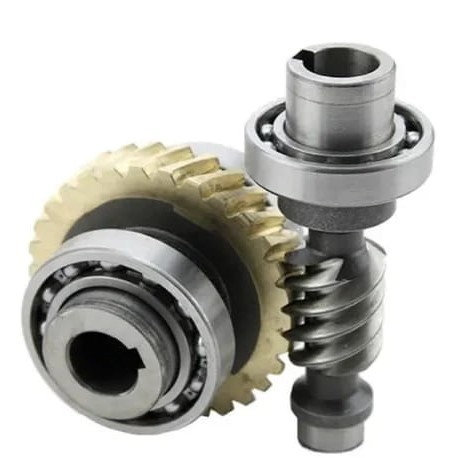

6.2 Heavy Truck
Typical uses
Mechanical steering gears and auxiliary steering units.
Self-locking mechanisms in dump body lifting and tilting systems.
Material approach
Worm: high-strength alloy steel, carburized or induction hardened and precision ground to control profile, lead and surface finish.
Worm wheel: tin bronze or high-performance aluminum bronze, sometimes combined with solid lubricants or tailored surface treatments.
Indicative results
Longer oil-change intervals and maintenance cycles when paired with appropriate lubricants.

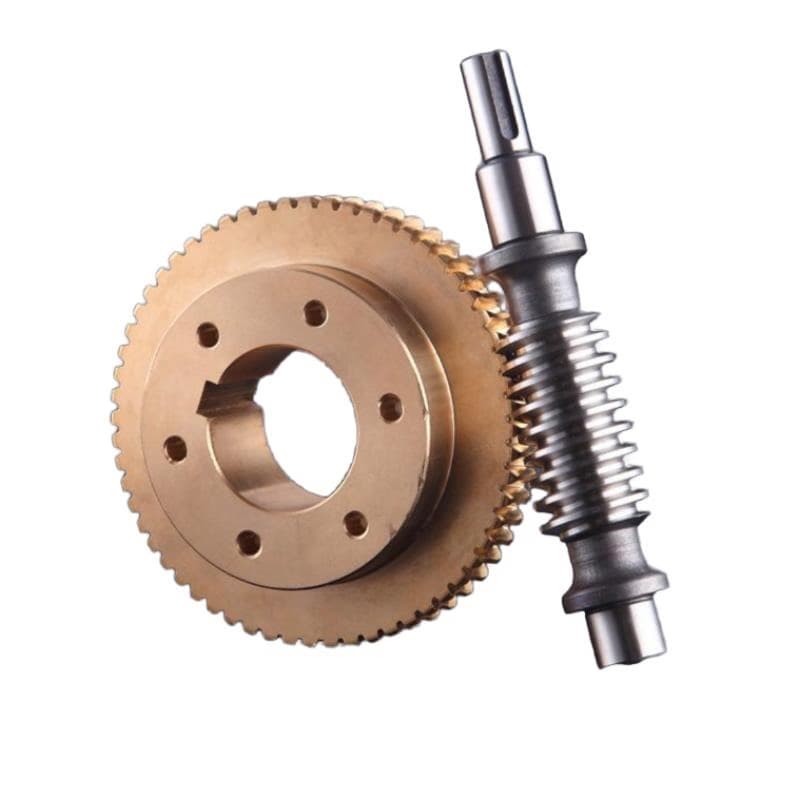

6.3 Construction Equipment
Typical uses
Slewing, folding and locking mechanisms on small loaders, scissor lifts and road machinery.
Exposure to high shock loads and severe dust, sand and mud.
Material approach
Worm: alloy steel with DLC or similar nano coatings to resist contact stress and abrasive particles.
Worm wheel: high-strength copper alloys or wear-resistant cast iron, with optimized tooth modifications and fine finishing.
Indicative results
Much lower tooth surface wear observed in field operation.
Smoother slewing and lifting, and extended overhaul intervals.
6.4 Electric Vehicles (EV)
Typical uses
Electric parking locks and steering-assist worm stages.
Seat, tailgate and battery cooling valve actuators where compact packaging is critical.
Material approach
Worm: precision-ground alloy steel, optionally with nano coatings for further friction reduction.
Worm wheel: high-performance polymers or composites, balancing low noise with adequate load capacity.
Indicative results
Lower transmission noise, supporting tighter vehicle acoustic targets.
Stable positioning accuracy and self-locking performance under high-frequency duty cycles.
7.Guide to Working With a Custom Gear Supplier
When OEM teams work with a custom gear supplier like PairGears, material decisions for worm gears should follow a disciplined engineering process.
1. Match Materials to Real Duty Cycles
Define load spectra, speed profiles, temperatures, lubrication regime and contamination levels.
For agricultural and construction machinery, pay special attention to mud, sand, water and chemical exposure.
2. Integrate Manufacturing and Surface Engineering
Use precision hobbing and grinding to achieve the required tooth profile, lead and surface roughness.
Apply tight process control to nano coatings and surface treatments to ensure thickness, adhesion and uniform coverage.
3. Validate with Testing and Field Trials
Combine hardness, metallography, contact fatigue, wear and corrosion testing for new worm gear materials.
Where possible, correlate bench results with field or road tests in each of the four sectors.
4. Design a Compatible Lubrication Strategy
Select lubricants that are compatible with both the base materials and any coatings.
Specify clear maintenance intervals and lubrication methods in the service documentation.
8.Example Material Properties
Table 2: Example Properties of Worm Gear Materials
| Material Type | Density (g/cm³) | Hardness (HV) | Tensile Strength (MPa) | Thermal Conductivity (W/m·K) | Typical Application |
Hardened Steel | 7.85 | 600 | 800 | 50 | High-load worms, heavy truck & construction shafts |
Bronze | 8.75 | 200 | 550 | 70 | Traditional worm wheels, steering worm wheels |
Composite Polymers | 1.2 | 150 | 80 | 0.2 | EV actuators, light-duty adjustment units |
| Advanced Alloys | 4.5 | 400 | 900 | 150 | Corrosion-sensitive ag/construction positions |
| Nano-Coated Metals | 7.85 | 1200 | 1000 | 100 | High-precision worms, critical drive elements |
| Ceramics | 3.8 | 1500 | 700 | 30 | Local components in extreme conditions |
This table supports engineering discussions between OEMs and a precision gear manufacturer, giving a quick reference for density, hardness and strength when screening candidate materials.
9.Conclusion
Advances in worm gear materials give designers new options to improve efficiency, durability and reliability across Agricultural Machinery, Heavy Truck, Construction Equipment and EV programs. Worm drives are no longer just“old technology”but a lever that a precision gear manufacturer and custom gear supplier can use to improve the whole drivetrain.
PairGears works with customers to evaluate material selection, heat treatment and surface engineering, tooth geometry control and lubrication strategy for each project. If you are planning or upgrading worm-gear-based mechanisms in any of these four sectors, Contact Us to discuss how PairGears can support you as your precision gear manufacturer and custom gear supplier.
