How can I verify a supplier's gear accuracy grade with inspection data?
Verifying a gear accuracy grade with data
Verify a gear accuracy grade against the named standard and edition, the specific deviation limits and the inspection report for the delivered gear. PairGears states capability up to ISO 1328 Grade 4, but a supplier must confirm feasibility for the exact gear geometry, material, heat treatment, quantity and inspection scope. A grade number by itself is not enough evidence.
Check the standard, report and measurement basis
- Name the reference: state the standard, edition and tolerance class. ISO 1328-1:2013 defines a flank-tolerance classification system and allowable values for cylindrical involute gears.
- Ask for the measured deviations: the relevant report may cover profile, lead, pitch, tooth thickness, runout or double-flank composite deviations, depending on the part and the requirement.

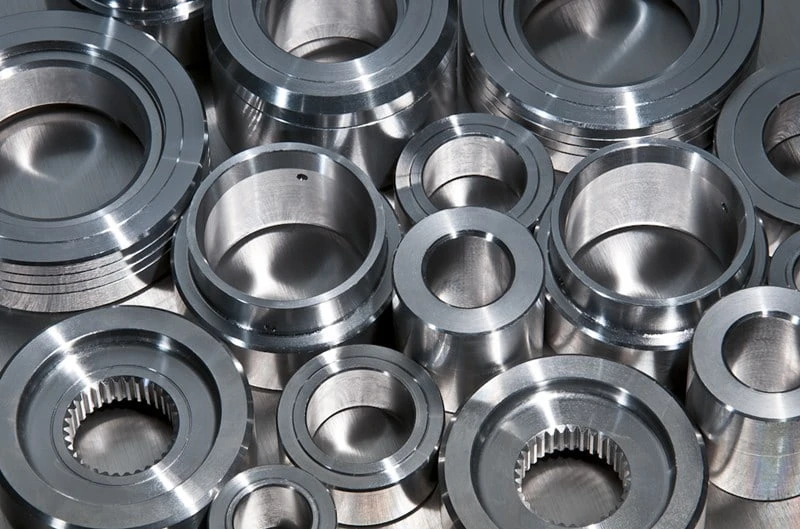

- Confirm the inspection condition: drawing revision, datum scheme, measurement method, heat-treatment stage and sampling must match the agreed acceptance basis.
Why process evidence still matters

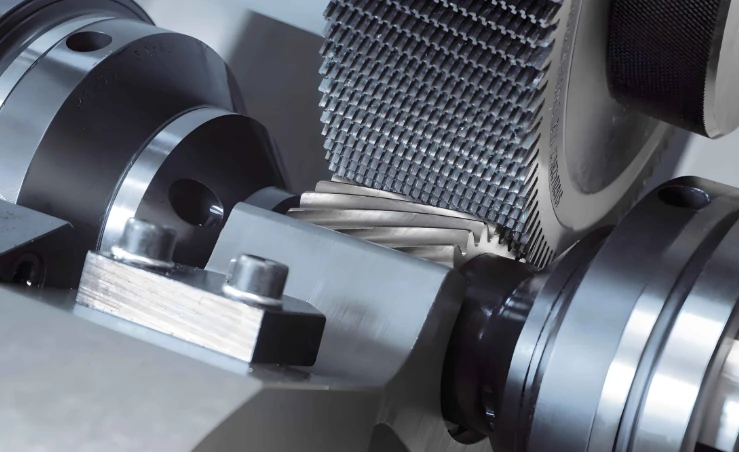

PairGears explains that final inspection verifies a result but cannot replace control of datums, tooth cutting, heat treatment and finishing. A good review therefore pairs the final report with a route that can hold the required geometry after heat treatment, rather than treating an initial sample as proof of every later batch.
Use PairGears quality-control information with the part drawing and requested report scope.
