OEM 1316304149 Synchronizer Ring for ZF Gearbox-PairGears
| Categories | Gears and Shafts of ZF Series |
|---|---|
| Trademark/Brand | PairGears Precision Gear Manufacturer |
| Model | PGZF560 |
| OEM No. | 1316304149, 1268304168, 1316304196, 1304304118 |
| Teeth | Z=57/48 |
| Size | OD:175 mm H:11.6 mm |
| Weight(Kg) | 0.385 |
| Process | Shaving Teeth |
| Material | 20CrMnTi |
| Heat Treatment | Carburizing |
| Hardness | 58-63HRC |
| Surface Treatment | Shot Peening |
| Update Time | Nov 13,2025 |
Detail Information
PRODUCT DESCRIPTION

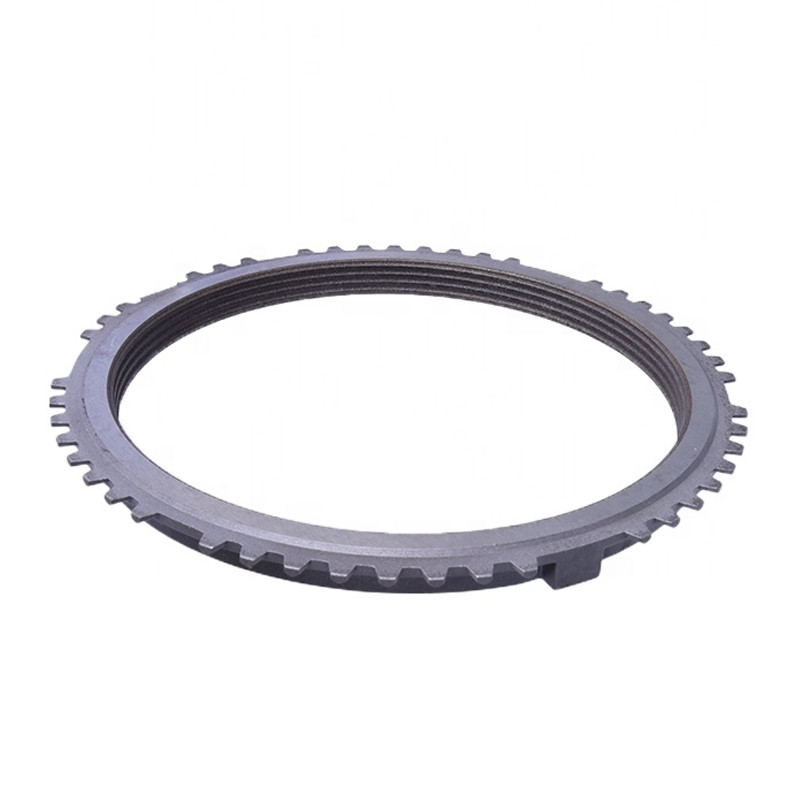

ZF Gearbox Synchronizer Ring 1316304149
The synchronizer cone OEM No 1316304149, 1268304168, 1316304196, 1304304118, 1316304189, 1316304168, 1318304168, 1318304189, 1297304507 is fit for ZF, Am Gears, DAF, Iveco, Eurotec, Renault Trucks, MAN:
Transmission Versions：1312 16S220 , 1313 16S150 , 1315 16S151, 1316 16S181 , 1316 16S221 ,1316 16S251.
This component is fundamental to reliable truck uptime and to maintaining smooth, stable transmission performance.
PairGears specializes in precision gear solutions that combine efficient power transfer, long-term durability, quiet operation, and dependable safety. For quotation or other information, please contact us and we will be happy to help you.
PRODUCT SPECIFICATION
Part Name | Synchronizer Ring | ||
OEM No | 1316304149, 1268304168, 1316304196, 1304304118, 1316304189, 1316304168, 1318304168, 1318304189, 1297304507 | ||
Teeth | Z=57/48 | ||
Size | OD: 175 mm
H: 11.6 mm | ||
Weight (Kg） | 0.385 | ||
Application | ZF, Am Gears, DAF, Iveco, Eurotec, Renault Trucks, MAN | ||
