How is the surface durability of plastic gears assessed?

Plastic gear surface durability is the ability of the working tooth flanks to resist unacceptable wear or damage under a defined operating duty. It depends on the exact polymer grade, mating surface, load, speed, temperature and lubrication. Use material-specific gear data and representative testing to assess it; a tooth-root bending rating alone does not establish how long the flanks will remain usable.

Which conditions must the assessment cover?

Material: identify the resin grade, reinforcement, conditioning and production method.
Duty: record torque, speed, operating cycles, reversals and peak loads.
Contact: specify the mating material, surface finish, alignment and working clearance.
Environment: state temperature, moisture exposure and the actual lubricant or dry-running condition.

Room-temperature material strength is not enough to establish tooth behavior at the operating temperature.

Schematic of a polymer gear test rig — Research test equipment illustrates why operating conditions must be controlled. Image: Longato, Hamon and Montani, Gear Solutions.

Why temperature and the mating gear matter

Contact and sliding generate heat. A change in temperature can change a polymer's stiffness and dimensions, while the mating flank and lubricant affect friction and wear. Check lubricant compatibility with the selected grade.

For example, a short, lightly loaded test does not validate continuous operation at a higher torque and temperature. A steel mating gear may help conduct heat away, but that pairing still needs suitable surface finish and application-specific verification.

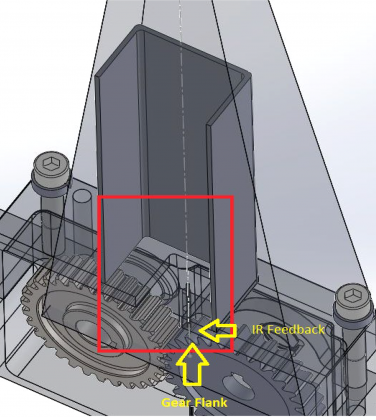

Schematic showing infrared measurement of a gear tooth — Tooth temperature is measured during a published polymer-gear test. Image: Longato, Hamon and Montani, Gear Solutions.

How should a wear test be judged?

Define the allowable tooth wear, backlash change or other functional limit before testing. Monitor the selected duty and inspect tooth condition at planned intervals. Compare measurements with the initial condition rather than assigning a universal number of hours to all plastic gears.

See the related service-life and strength questions below for the broader distinction between operating life, tooth-root failure and flank damage. These general principles do not establish a particular plastic-gear manufacturing capability at PairGears.

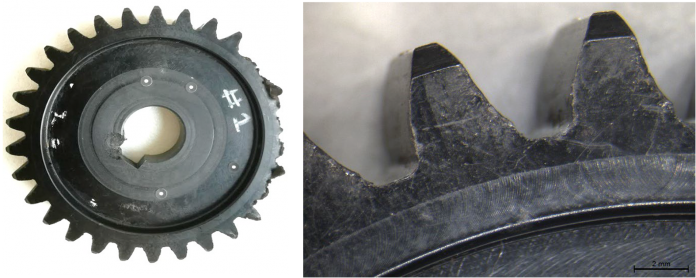

Microscopic views of tooth-flank damage after polymer gear testing — Post-test examination helps identify the actual damage mechanism. Image: Longato, Hamon and Montani, Gear Solutions.
